Name: 2050 Master Transportation Plan

Display Field: STREET_N_2

Type: Feature Layer

Geometry Type: esriGeometryPolyline

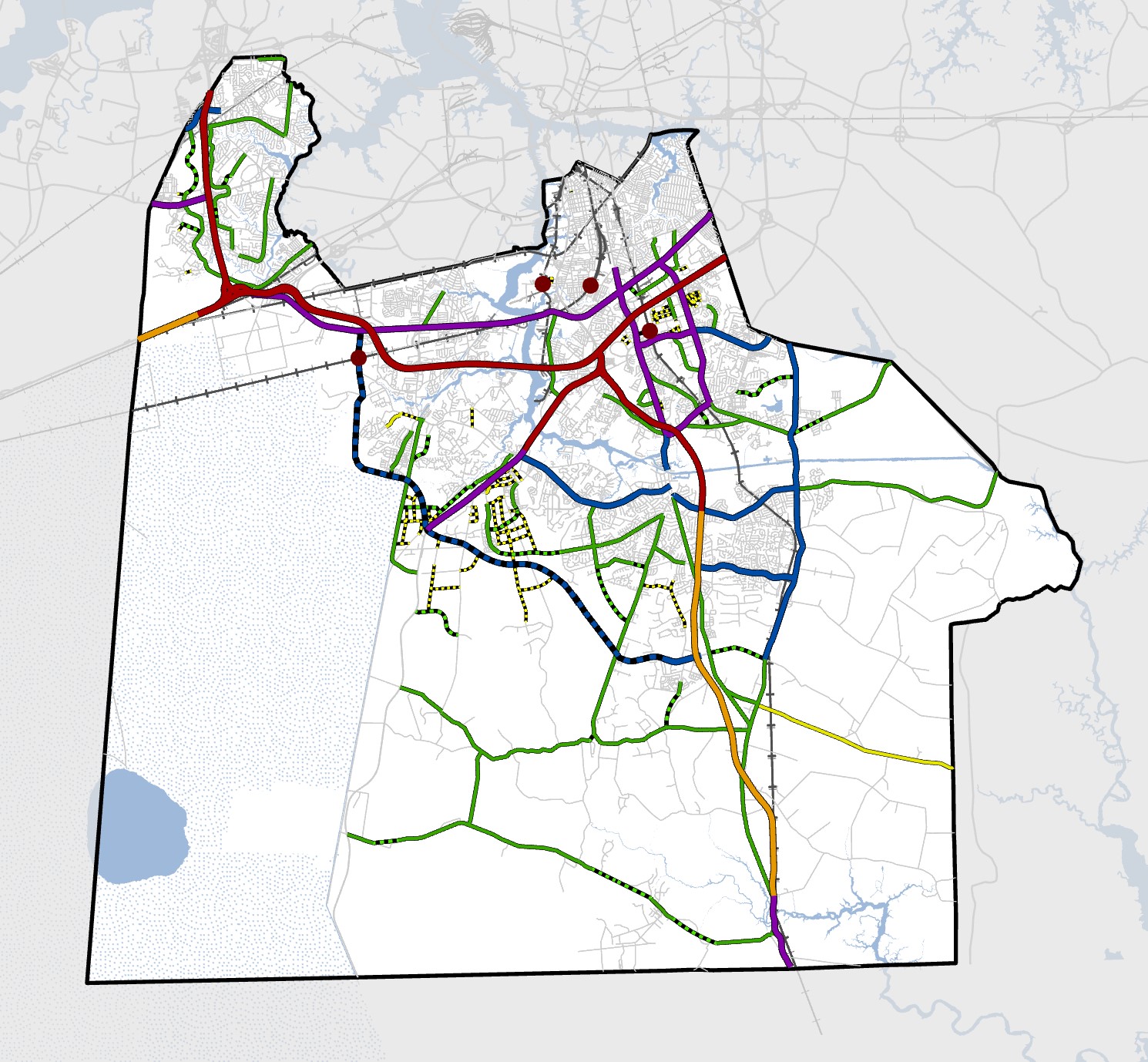

Description: The 2050 Master Transportation Plan shows a master street network for the City of Chesapeake. It was created by combining traffic demand model data with state centerline data. It shows both existing roads and proposed future roads with projected 2050 traffic volumes. It was adopted as part of the 2045 Comprehensive Plan by City Council on January 20, 2026. Future updates: This layer iwill be updated periodically to include new roads recommended by adopted Small Area Plans or City Council actions. Coordinate System: VA State Plane South (EPSG 3968)The 2050 MTP layer contains a myriad of fields. A brief description is provided below.Road Classificationlane_type - Road type (8 Lane Freeway, 6 Lane Aerial NEW, etc.) - This layer is used for the map symbology it combines road type, number of lanes, or new or existing roadwayssegment_exists - Y = existing road; N = proposed roadRoad Namesstreet_name - this layer combines the street name, type, and directional prefixes and suffexesrte_name - route nameTraffic Model Networkid -Link ID in the traffic modela - Node IDS (shows direction of travel see Node.shpb - Node IDS (shows direction of travel see Node.shpdistance - actual road length in feet2050 Traffic Volumesam_v - AM peak hour volumepm_v - PM peak hour volumemd_v - midday peak hour volument_v - nighttime peak hour volumeallday_v - Total daily volumeRoadway Capacityam_link_ca - AM peak capacitypm_link_ca - PM peak capacitymd_link_ca - Midday peak capacitynt_link_ca - Nighttime peak capacityTo find congested roads, compare volume vs capacity. If pm_v > pm_link_ca, the road is over capacity.Road Characteristics:factype - road classification (1 = Interstate, 3 = Prinicipal Arterial, 4 = Major Arterial, 5 = Minor Arterial, 6 = Collector, 8 = Local)lanes - number of lanese-lanes - existing lanesp-lanes - proposed lanesFields that are not needed but are in the table. The alias has been updated to say these fields are not needed.:Processing leftovers - objectid_1, objectid_12, fid1, fid2, shape_length_1, shape_length12VDOT tracking stuff - rcl_id, vdot_edge_id, local_id, mfips, geometry_source, geometry_edit_date, street_name_source, address_range_sourceAddress ranges - left_from_address, right_to_address, etc - not used in MTPStreet name parts - street_prefix_direction, street_suffix, etc. - The street names have been combined into a single layerOther technical fields - mtfcc, segment_type, reversibleMiscelaneous - WSP edit, dual_carrier, one way, reversibleThis data layer was updated to include complete field aliases and the fields were rearranged so that the ones that were not needed appear at the end of the table.The Virginia Geographic Information Network (VGIN) has coordinated and manages the development of a consistent, seamless, statewide digital road centerline file with address, road name, and state route number attribution, as part of the Virginia Base Mapping Program (VBMP). The Road Centerline Program (RCL) leverages the Commonwealth's investment in the VBMP digital orthophotography and is focused on creating a single statewide, consistent digital road file. The RCL data layer is a dynamic dataset supported and maintained by Virginia's Local Governments, VDOT, and VGIN. VBMP RCL is extracted and provided back to local governments and state agencies in many geographic data sets every quarter.

Service Item Id: f9cdeb0f22c849eba08c6bce50552880

Copyright Text: Virginia Geographic Information Network (VGIN), Virginia Department of Transportation (VDOT), Virginia local government GIS, Chesapeake Planning

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 1.2074690040680913E7
YMin: 3366042.2076502945
XMax: 1.2188330521635322E7
YMax: 3481994.9123611026
Spatial Reference: 102747  (2284)  VCSWkid(5703)  LatestVCSWkid(5703)

Drawing Info:

Renderer:
Unique Value Renderer:
Field 1: LANE_TYPE
Field 2: N/A
Field 3: N/A
Field Delimiter: ,
Default Symbol:
N/A
Default Label: N/A
UniqueValueInfos:
• Value: 8 Lane Freeway
  Label: 8 Lane Freeway
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [0, 0, 0, 255]
  Width: 3
• Value: 6 Lane Freeway
  Label: 6 Lane Freeway
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [0, 0, 0, 255]
  Width: 3
• Value: 8 Lane Arterial
  Label: 8 Lane Arterial
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [0, 0, 0, 255]
  Width: 3
• Value: 6 Lane Arterial
  Label: 6 Lane Arterial
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [0, 0, 0, 255]
  Width: 3
• Value: 6 Lane Arterial NEW
  Label: 6 Lane Arterial NEW
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [0, 0, 0, 255]
  Width: 3
• Value: 4 Lane Arterial
  Label: 4 Lane Arterial
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [0, 0, 0, 255]
  Width: 2
• Value: 4 Lane Arterial NEW
  Label: 4 Lane Arterial NEW
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [0, 0, 0, 255]
  Width: 2
• Value: 2 Lane Collector
  Label: 2 Lane Collector
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [0, 0, 0, 255]
  Width: 2
• Value: 2 Lane Roadway NEW
  Label: 2 Lane Roadway NEW
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [0, 0, 0, 255]
  Width: 1
• Value: Railroad
  Label: Railroad Corridor
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [78, 78, 78, 255]
  Width: 1
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• STREET_N_2 ( type: esriFieldTypeString, alias: STREET NAME FULL, length: 100 )
• RTE_NAME ( type: esriFieldTypeString, alias: ROUTE NAME, length: 35 )
• LANE_TYPE ( type: esriFieldTypeString, alias: ROAD TYPE - SYMBOLOGY, length: 254 )
• SEGMENT_EX ( type: esriFieldTypeString, alias: SEGMENT EXISTS , length: 1 )
• E_LANES ( type: esriFieldTypeDouble, alias: EXISTING LANES )
• P_LANES ( type: esriFieldTypeDouble, alias: PROPOSED LANES )
• LOCAL_SPEE ( type: esriFieldTypeInteger, alias: LOCAL SPEED )
• FACTYPE ( type: esriFieldTypeString, alias: ROAD CLASSIFICATION , length: 2 )
• DIR ( type: esriFieldTypeDouble, alias: DIR )
• LENGTH ( type: esriFieldTypeDouble, alias: LENGTH )
• DISTANCE ( type: esriFieldTypeDouble, alias: ROAD LENGTH - FEET )
• LANES ( type: esriFieldTypeDouble, alias: # LANES )
• Shape.STLength() ( type: esriFieldTypeDouble, alias: Shape_Length )
• created_user ( type: esriFieldTypeString, alias: Created User, length: 255 )
• created_date ( type: esriFieldTypeDate, alias: Created Date, length: 8 )
• last_edited_user ( type: esriFieldTypeString, alias: Last Edited User, length: 255 )
• last_edited_date ( type: esriFieldTypeDate, alias: Last Edited Date, length: 8 )
